After more than 25 years of producing the most highly regarded and technically advanced wheels for professional road racing applications, Forgeline has directed our experience and capability toward the drag racing industry and developed the all-forged NW105 5-Lug Beadlock wheel.
After more than 25 years of producing the most highly regarded and technically advanced wheels for professional road racing applications, Forgeline has directed our experience and capability toward the drag racing industry and developed the all-forged NW105 5-Lug Beadlock wheel.
Unlike most traditional drag racing wheels, Forgeline’s forged monoblock single beadlock NW105 5-Lug Beadlock wheel is carved entirely in one piece from a single forging of 6061-T6 aluminum using an advanced precision machining process. This forged monoblock technology has proven successful, for many years, at the highest levels of road racing, and Forgeline is excited to apply it to beadlock wheels for straight line racing applications.

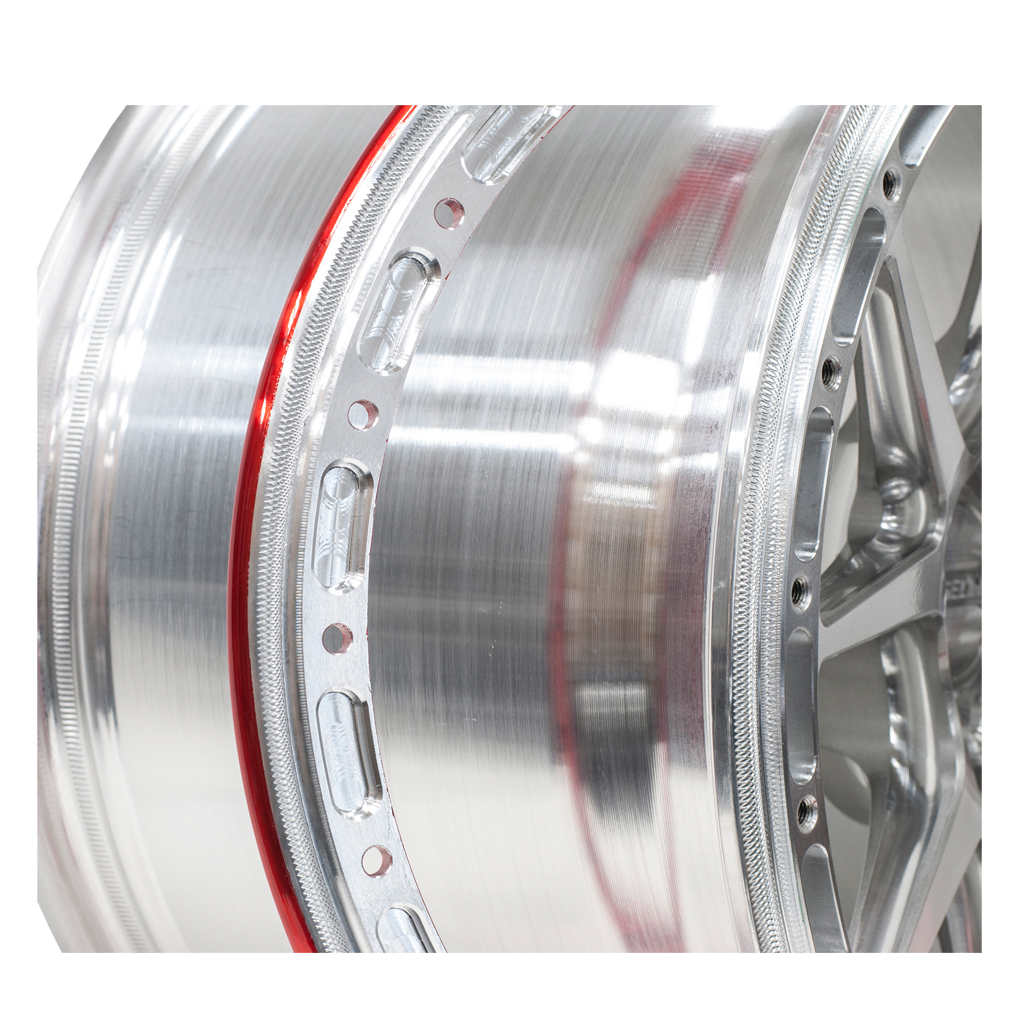

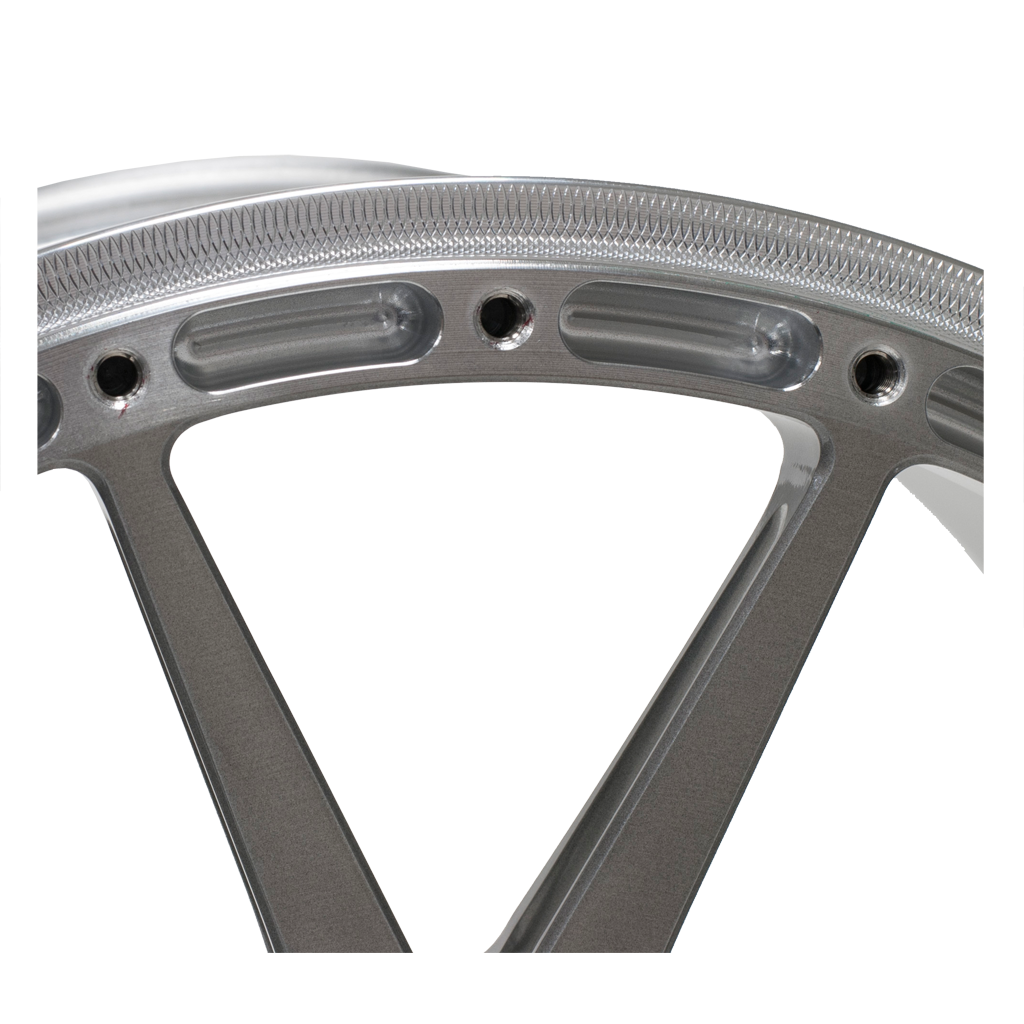

The NW105 5-Lug Beadlock wheel is very similar to our NW105 5-Lug forged monoblock wheel with one big exception: It has been re-engineered to include a special bolt-on outboard beadlock ring that, like the wheel itself, is also precision-machined from forged 6061-T6 aluminum. This forged aluminum ring holds the tire securely in place, to limit unwanted tire slip against the wheel, and to keep the tire from unseating, at very high speeds. The forged beadlock ring is secured to the wheel with a series of 21 standard lightweight titanium bolts.

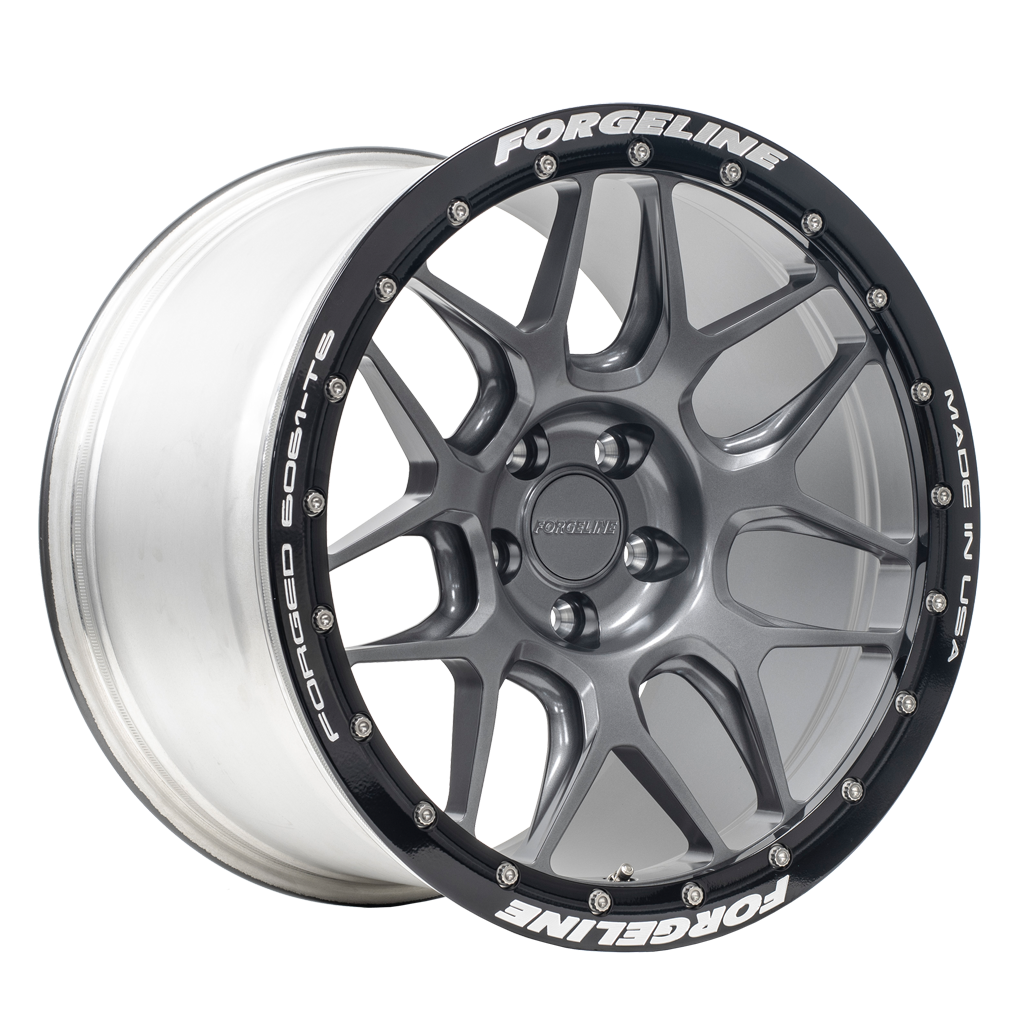

The Forgeline forged monoblock NW105 5-Lug Beadlock features a split 7-spoke design with tapered angular spokes and pronounced chamfered edges that creates a high-tech appearance on par with its advanced engineering technology and standard-setting performance capability. It is is available to order immediately in 17, 18, and 19 inch diameters in a range of widths and custom offsets & fitments. And just like any Forgeline wheel, the NW105 5-Lug Beadlock is available with fully customizable finish options.
Custom made-to-order means that we engineer and build every set of forged wheels one-at-a-time from scratch for each individual customer and each unique vehicle application. This consists of not only building the style of wheel and finish color that you want, but also delivering custom sizes and fitments to best match your vehicle and your intended application. Within the limits determined by the wheel style and the forging from which it is made, in most cases, we can create a custom size, lug pattern, and backspace/offset to create the perfect fitment for almost any application!
Every Forgeline forged wheel is individually custom finished in-house at our Dayton, Ohio manufacturing facility. This resource-intensive process starts with a painstaking hand-grinding, sanding, & inspection process and concludes with a high-quality hand-applied powder coat that is more consistent & more durable than what would otherwise be possible with a mass-produced alternative. Virtually any color is available, including a large selection of in-stock color options. Three piece wheels can even be finished with different custom color combinations on the center, inner rim, & outer rim!
Size | Qty. | MSRP | Your Price | CONFIGURE WHEEL |
---|---|---|---|---|
17x9.0 | $2095.00 |
|
||
17x10.0 | $2095.00 |
|
||
17x11.0 | $2095.00 |
|
||
17x12.0 | $2095.00 |
|
||
17" RING REPLACEMENT | $315.00 |
|
Size | Qty. | MSRP | Your Price | CONFIGURE WHEEL |
---|---|---|---|---|
18x8.5 | $2350.00 |
|
||
18x9.0 | $2350.00 |
|
||
18x9.5 | $2350.00 |
|
||
18x10.0 | $2385.00 |
|
||
18x10.5 | $2385.00 |
|
||
18x11.0 | $2385.00 |
|
||
18x12.0 | $2385.00 |
|
||
18x13.0 | $2385.00 |
|
||
18" RING REPLACEMENT | $325.00 |
|
Size | Qty. | MSRP | Your Price | CONFIGURE WHEEL |
---|---|---|---|---|
19x8.5 | $2550.00 |
|
||
19x9.0 | $2550.00 |
|
||
19x9.5 | $2550.00 |
|
||
19x10.0 | $2575.00 |
|
||
19x10.5 | $2575.00 |
|
||
19x11.0 | $2575.00 |
|
||
19x11.5 | $2575.00 |
|
||
19x12.0 | $2575.00 |
|
||
19x13.0 | $2575.00 |
|
||
19" RING REPLACEMENT | $340.00 |
|
Size | Qty. | MSRP | Your Price | CONFIGURE WHEEL |
---|---|---|---|---|
20x8.5 | $2650.00 |
|
||
20x9.0 | $2650.00 |
|
||
20x9.5 | $2650.00 |
|
||
20x10.0 | $2675.00 |
|
||
20x10.5 | $2675.00 |
|
||
20x11.0 | $2675.00 |
|
||
20x11.5 | $2675.00 |
|
||
20x12.0 | $2675.00 |
|
||
20x13.0 | $2675.00 |
|
||
20" RING REPLACEMENT | $415.00 |
|
