CF206

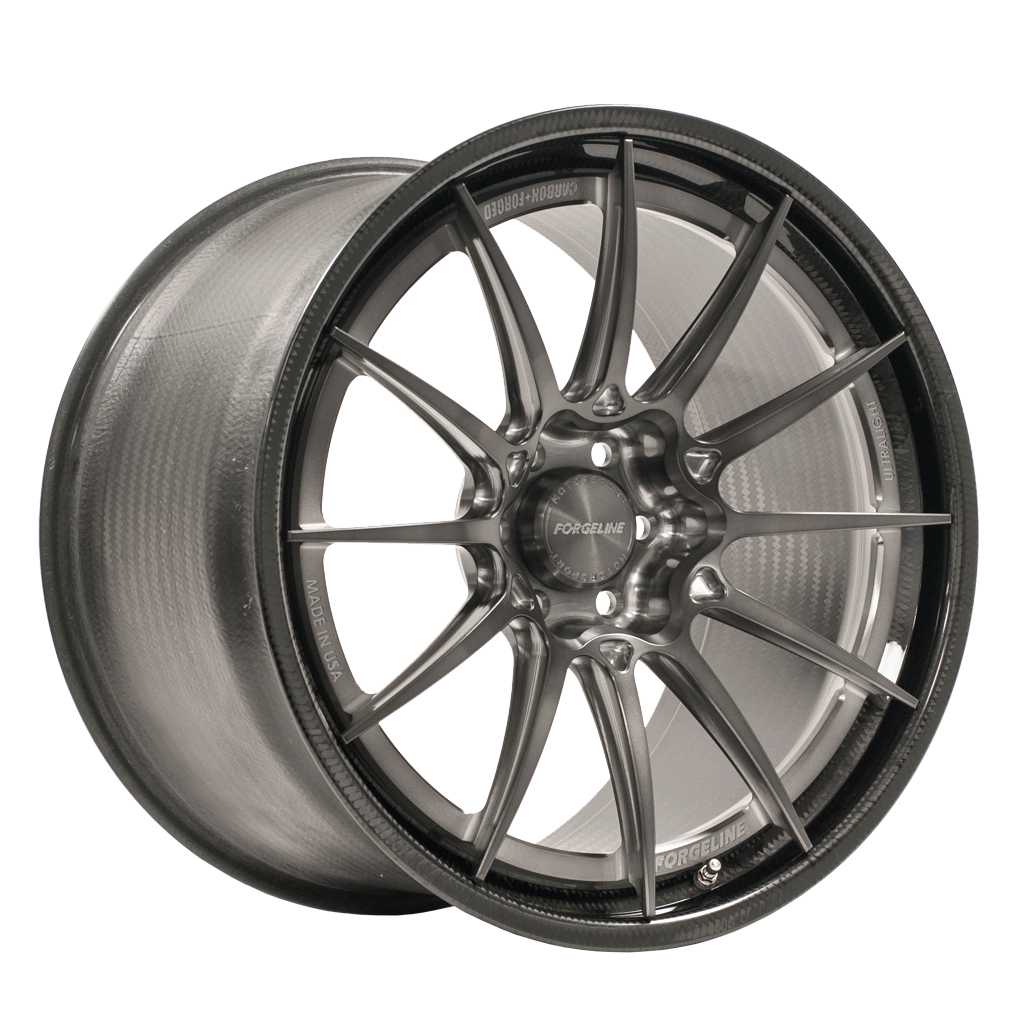

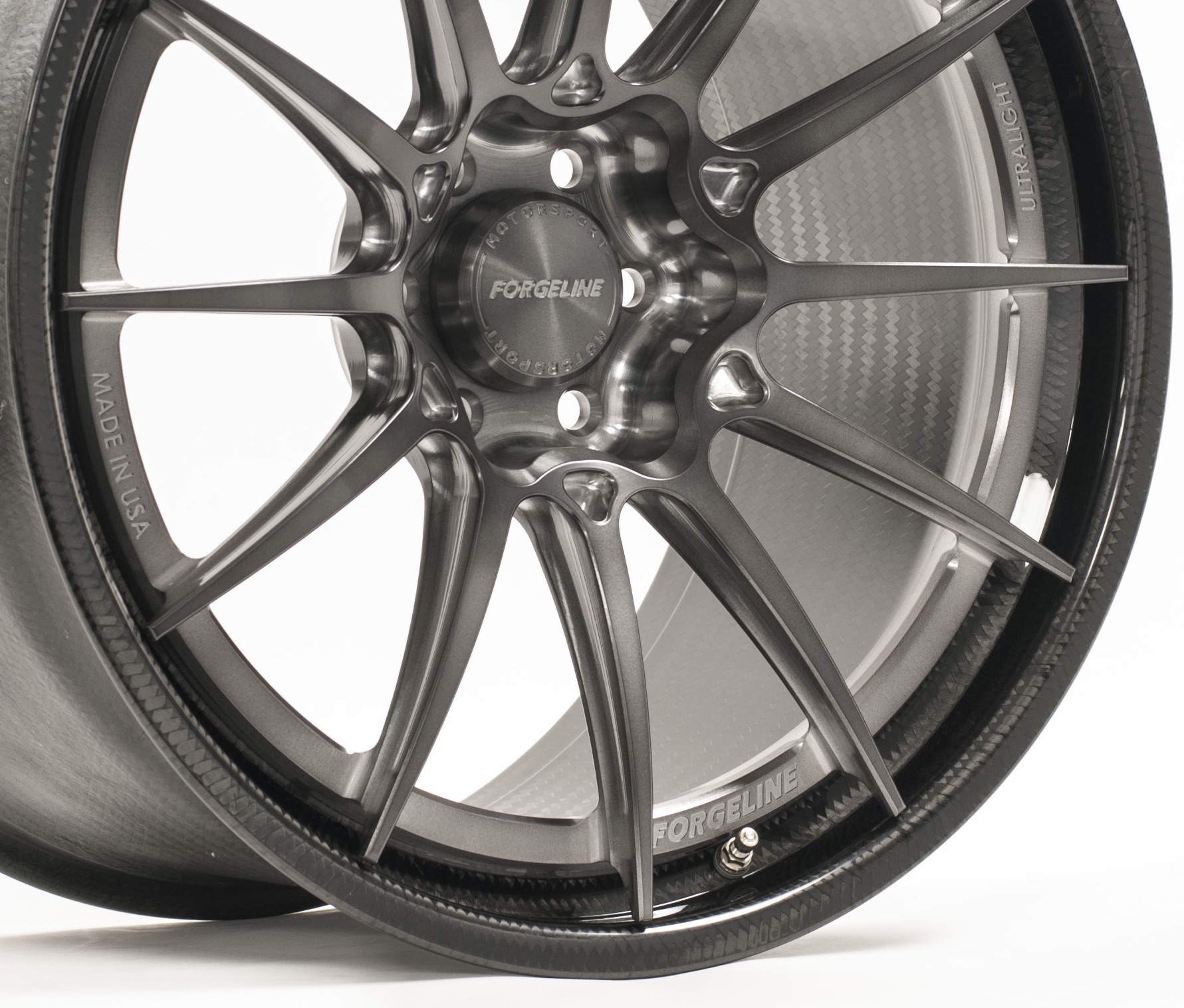

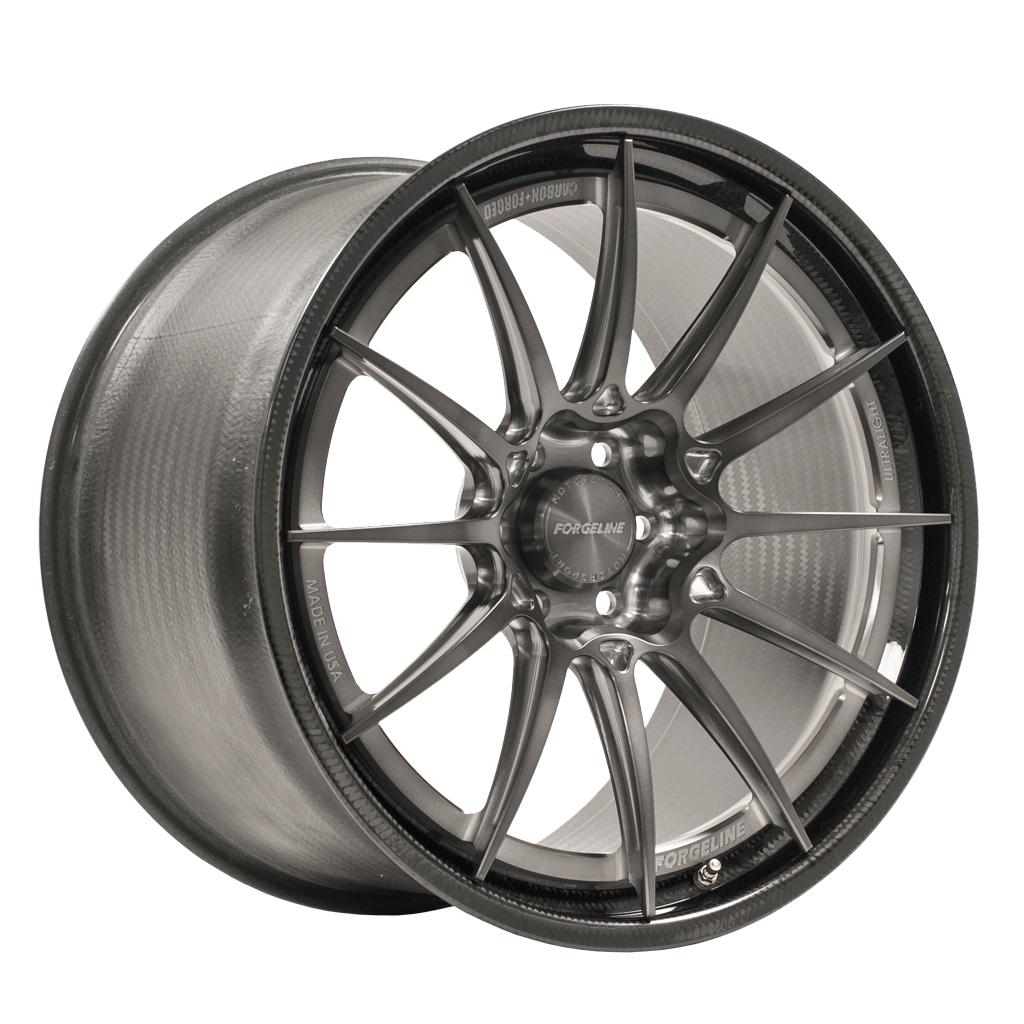

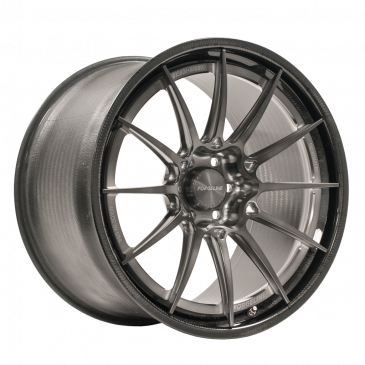

The ultra-lightweight Carbon+Forged CF206 wheel combines a weight-optimized CNC-machined forged aluminum center with our revolutionary proprietary carbon fiber barrel to deliver the ultimate in technological advancement, exclusive styling, and unparalleled performance. The CF206 is based upon our super-light CF205 but is specially engineered for six-lug Dodge Viper applications. It combines a carbon fiber barrel with a lightweight racing-inspired twelve spoke forged aluminum center design, 6-lug open-lug hub, and aggressive I-beam machining details to yield a wheel with absolutely impressive performance metrics: very low static mass, very low rotational inertia, minimal deflection, and excellent fatigue strength!
From
$4850.00
From $4850.00
FINISHES
Battleship Gray Gloss
Black Gloss
Black Matte
Black Satin
Bronze Gloss
Bronze Matte
Bronze Satin
Brushed Bronze Satin
Carbon Black Gloss
Frozen Charcoal Satin
Full Polish Gloss
Graphite Gloss
Graphite Matte
Graphite Satin
Gunmetal Gloss
Gunmetal Satin
Hampton Gold Gloss
HTM Machined Gloss
Hypersilver Gloss
Hypersilver matte
Machine Brushed Gloss
Medium Bronze Satin
Motorsport Gold Satin
Pearl Gray Gloss
Pearl White Satin
Polished Brushed Gloss
Race Gold Gloss
Race Gold Matte
Race Gold Satin
Standard Silver Gloss
Tankard Gray Textured
Tinted Clear Matte
Tinted Gold Transparent Gloss
Titanium Matte
Transparent Blue Gloss
Transparent Copper Gloss
Transparent Gold Gloss
Transparent Red Gloss
Transparent Red Matte
Transparent Smoke Gloss
Transparent Smoke Dark Gloss
Customize Order
$4850.00
Tell Us How You Feel!
Tell Us How You Feel!
Product Details
The CF206’s super-lightweight carbon fiber barrel creates an attractive and visually distinctive rim that is 40% lighter than its aluminum equivalent, delivering a significant weight reduction to the wheel's outer perimeter, where it has the greatest reduction in unwanted inertia and yields real-world improvements to acceleration, braking, cornering traction, ride quality, NVH (noise, vibration, & harshness), driver/passenger comfort, and fuel economy.
Forgeline Carbon+Forged carbon fiber barrels are also engineered and tested to deliver industry-leading levels of fatigue strength, impact/damage resistance, and deflection stiffness. Tested by an independent automotive industry laboratory, they have proven to be incredibly strong and robust, exceeding all existing SAE and TUV test specifications.
The CF206 is available in 19, 20, and 21-inch fitments, each uniquely engineered for modern exotic sport and luxury vehicle applications. And like any Forgeline wheel, the CF206’s forged aluminum center is available in the full array of customizable finish options. (Note: The Carbon+Forged carbon fiber barrel is available in your choice of either Matte or High-Gloss natural carbon weave finish.)
If you appreciate the world's most advanced wheel technology, want to stand apart from the crowd with unique styling & finish options, and have the means to afford the very finest, then our made-to-order Carbon+Forged CF206 wheel is quite literally created just for you.
- Lightweight Racing-Inspired Twelve Spoke 6061-T6 Forged Aluminum Center
- 6-Lug Hub Center Specifically Engineered for Dodge Viper Applications
- Open Lug Hub Center
- Aggressive I-Beam Machining Details
- Revolutionary Proprietary Carbon Fiber Barrel
- Very Low Static Mass (the 20x12 weighs only 18.5 lbs!)
- Very Low Rotational Inertia
- Minimal Deflection
- Excellent Fatigue Strength
- Carbon+Forged Carbon Fiber Barrel Exceeds All Existing SAE and TUV Test Specifications
- Intended for Street Use. Not Recommended for Track Applications.
- Available in 19, 20, and 21-inch Fitments
- Customizable Finish Options (Aluminum Center Only)
- Carbon+Forged Carbon Fiber Barrel Can Be Finished in Either Matte or High-Gloss Natural Carbon Weave
- Legendary Forgeline Quality and Customer Service
VEHICLE TAILORED FITMENTS
Custom made-to-order means that we engineer and build every set of forged wheels one-at-a-time from scratch for each individual customer and each unique vehicle application. This consists of not only building the style of wheel and finish color that you want, but also delivering custom sizes and fitments to best match your vehicle and your intended application. Within the limits determined by the wheel style and the forging from which it is made, in most cases, we can create a custom size, lug pattern, and backspace/offset to create the perfect fitment for almost any application!
CUSTOM FINISHING
Every Forgeline forged wheel is individually custom finished in-house at our Dayton, Ohio manufacturing facility. This resource-intensive process starts with a painstaking hand-grinding, sanding, & inspection process and concludes with a high-quality hand-applied powder coat that is more consistent & more durable than what would otherwise be possible with a mass-produced alternative. Virtually any color is available, including a large selection of in-stock color options. Three piece wheels can even be finished with different custom color combinations on the center, inner rim, & outer rim!
| Size | Qty. | Sale Price | Your Price | CONFIGURE WHEEL |
|---|---|---|---|---|
| 19x10.0 | $4850.00 |
|
| Size | Qty. | Sale Price | Your Price | CONFIGURE WHEEL |
|---|---|---|---|---|
| 20x10.0 | $5100.00 |
|
| Size | Qty. | Sale Price | Your Price | CONFIGURE WHEEL |
|---|---|---|---|---|
| 21x11.0 | $5300.00 |
|
||
| 21x12.0 | $5600.00 |
|
||
| 21x13.0 | $5900.00 |
|
There are no Tech Tips available.
There are no featured galleries matching this product.
There are no Instructions available.
There is no Warranty description available.
Reviews
So yeah, these are eye-wateringly expensive, so for price and value, I can't rate them very high. These wheels are not rated for motorsport, and the inside of the barrel is clearcoated carbon fiber, so with super high brake heat, I'm told they may discolor. Also, treat them just like paint when cleaning so they don't scratch when being cleaned. That said, these are stunningly cool. Extremely light and when cleaned up, absolute jaw droppers. People at car shows won't believe you that the whole barrel is carbon fiber. There isn't a bigger flex for the show scene than these.
Posted by: Bryan
